Configure Prometheus Email Alerting with AlertManager

kifarunix.com

In this tutorial, you will learn how to configure Prometheus Email alerting with AlertManager. AlertManager is used to handle alerts sent by client applications such as the Prometheus server. It takes care of deduplicating, grouping, and routing them to the correct receiver integration such as email, PagerDuty, or OpsGenie. It also takes care of silencing and inhibition of alerts.

There is more to Prometheus! Check the link below;

Configuring Prometheus Email Alerting with AlertManager

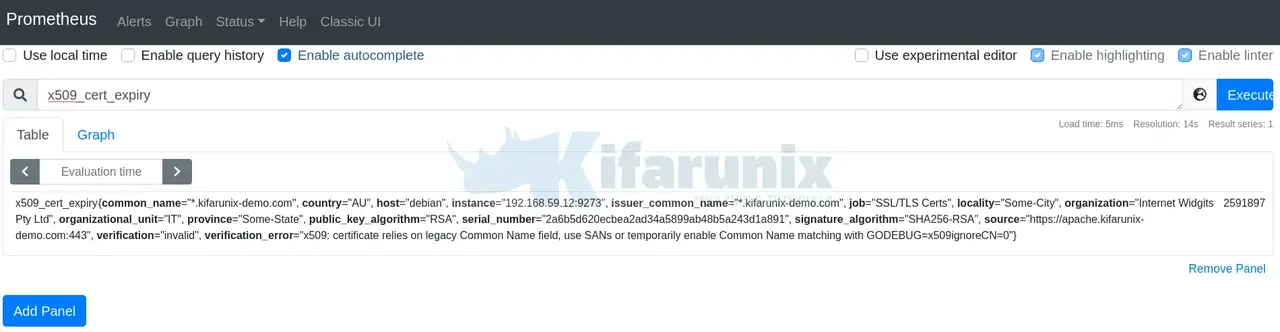

check ssl monitoring telegraf

We integrated Telegraf with Prometheus for SSL/TLS certificate.

From the above screenshot, you can see that you have 2591897 seconds, which is equivalent to ~30 days (a month) before the certificate expires.

With that duration of time, one might end up forgetting that SSL/TLS certificates expires and hence may forget to renew the certificate. That is why it is important to configure Prometheus Email alerting such that, when a few days are due for certificate renewal, you can be notified via email.

So, assuming that you already have Prometheus up and running, how can you use AlertMnager to configure Prometheus Email alerting?

Therefore, open Prometheus configuration file and set alertmanager configurations, the Promtheus alert rules files as shown below;

vim /etc/prometheus/prometheus.yml

Update the lines below accordingly;

# Alertmanager configuration alerting: alertmanagers: - static_configs: - targets: - localhost:9093 # Load rules once and periodically evaluate them according to the global 'evaluation_interval'. rule_files: - "alert_rules.yml"

Without comment lines, this is how our Prometheus configuration file looks like;

global: scrape_interval: 15s # Set the scrape interval to every 15 seconds. Default is every 1 minute. evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute. alerting: alertmanagers: - static_configs: - targets: - localhost:9093 rule_files: - "alert_rules.yml" scrape_configs: - job_name: 'prometheus' static_configs: - targets: ['localhost:9090'] - job_name: 'SSL/TLS Certs' static_configs: - targets: ['192.168.59.12:9273']

Save and exit the configuration file.

Create Prometheus Alert Rules

Alerting rules allow you to define alert conditions based on Prometheus expression language expressions and to send notifications about firing alerts to an external service. Whenever the alert expression results in one or more vector elements at a given point in time, the alert counts as active for these elements’ label sets“.

In our configuration file, we defined the Prometheus rules file as alert_rules.yml . This file should reside within the Prometheus configurations directory, /etc/prometheus .

Hence, create the rules file with the content similar to below;

vim /etc/prometheus/alert_rules.yml

Note that in this example, we will be creating rule to alert us when the SSL/TLS certificate is due to expire in a few days.

As shown above, we have a certificate that is due for renewal in the next 30 days. To make this demo easy, we will create a rule to alert when have 30 or less days to certificate renewal.

groups: - name: alert_rules rules: - alert: SSL_TLS_Cert_Expiry expr: x509_cert_expiry

Various setting values have been explained here.

Save and exit the file.

Check if the rule files are valid or not;

promtool check rules /etc/prometheus/alert_rules.yml
Checking /etc/prometheus/alert_rules.yml SUCCESS: 1 rules found

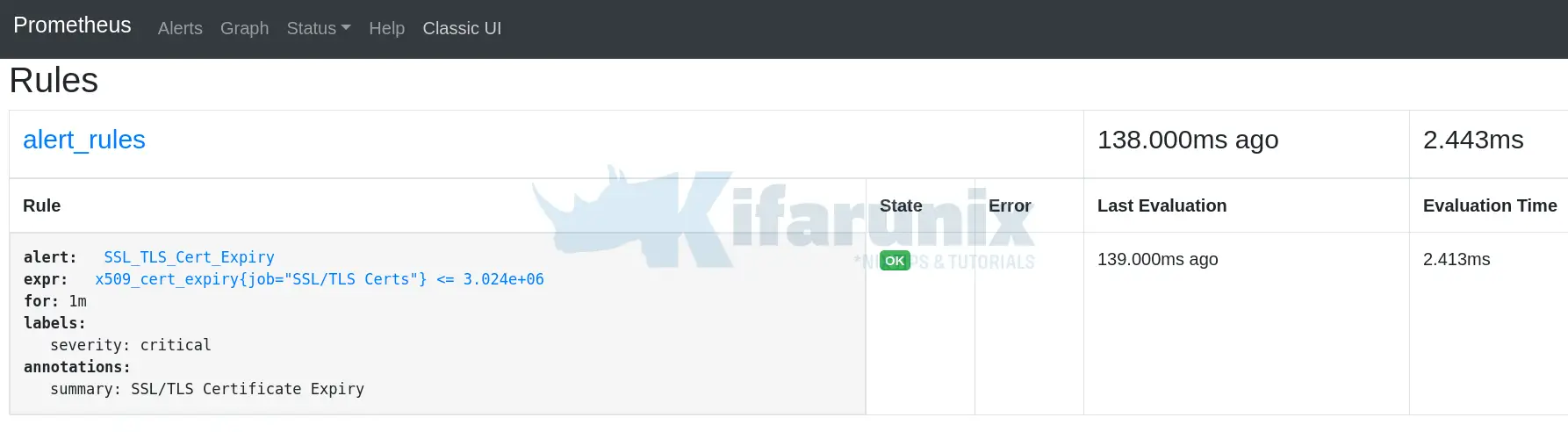

If you check on Prometheus web interface Rules page;

Configure Prometheus Email Alerting with AlertManager

Install and Configure AlertManager

Install AlertManager

AlertManager can be installed using pre-compiled binaries that can be downloaded from Prometheus downloads section.

Hence, before you can install AlertManager;

Create AlertManager system user and group as shown below;

useradd -M -r -s /bin/false alertmanager

Next, navigate to the downloads section and grab the latest version of AlertManager. You simply use wget to download it. The current release version as of this writing is 0.21.0.

VER=0.21.0
wget https://github.com/prometheus/alertmanager/releases/download/v$VER/alertmanager-$VER.linux-amd64.tar.gz

Extract the downloaded binary;

tar xzf alertmanager-0.21.0.linux-amd64.tar.gz

Copy the AlertManager binary files, alertmanager and amtool to binary directory like /usr/local/bin/ .

cp alertmanager-0.21.0.linux-amd64/ /usr/local/bin/

Next, create a configuration directory for AlertManager and copy the YAML configuration to that directory;

cp alertmanager-0.21.0.linux-amd64/alertmanager.yml /etc/alertmanager/

Set the ownership of the AlertManager configuration directory and the binaries to alertmanager user created above;

chown alertmanager: /etc/alertmanager/alertmanager.yml /usr/local/bin/

Configure AlertManager

In this setup, we will be sending the alerts via Email and we will use Gmail relay in that case.

Hence, configure AlertManager as follows;

vim /etc/alertmanager/alertmanager.yml
global: resolve_timeout: 5m route: group_by: ['alertname'] group_wait: 10s group_interval: 10s repeat_interval: 24h receiver: 'email' receivers: - name: 'email' email_configs: - to: '[email protected]' from: '[email protected]' smarthost: smtp.gmail.com:587 auth_username: '[email protected]' auth_identity: '[email protected]' auth_password: 'password'

Save and exit the configuration file. Be sure to set the email settings appropriately.

More about the config on configuration page and git repo page.

Check the Alertmanager configuration file to validate it.

amtool check-config /etc/alertmanager/alertmanager.yml
Checking '/etc/alertmanager/alertmanager.yml' SUCCESS Found: - global config - route - 0 inhibit rules - 1 receivers - 0 templates

Running AlertManager

You can run Alertmanager in standalone mode by executing the command below;

alertmanager --config.file /etc/alertmanager/alertmanager.yml

Remember, we set Prometheus to connect to Alertmanager via localhost:9093 , hence replace the x.x.x.x with the correct address.

To run AlertManager as a service;

cat > /etc/systemd/system/alertmanager.service

For other options, consult /usr/local/bin/alertmanager --help .

Reload systemd configurations and start Alertmanager;

systemctl daemon-reload
systemctl enable --now alertmanager

Check the status;

systemctl status alertmanager
● alertmanager.service - AlertManager Server Service Loaded: loaded (/etc/systemd/system/alertmanager.service; enabled; vendor preset: enabled) Active: active (running) since Sat 2021-04-10 23:16:25 EAT; 1s ago Main PID: 3959 (alertmanager) Tasks: 8 (limit: 2359) Memory: 13.5M CGroup: /system.slice/alertmanager.service └─3959 /usr/local/bin/alertmanager --config.file /etc/alertmanager/alertmanager.yml --web.external-url=http://localhost:9093 Apr 10 23:16:25 debian systemd[1]: Started AlertManager Server Service. . . Apr 10 23:16:25 debian alertmanager[3959]: level=info ts=2021-04-10T20:16:25.745Z caller=main.go:485 msg=Listening address=:9093

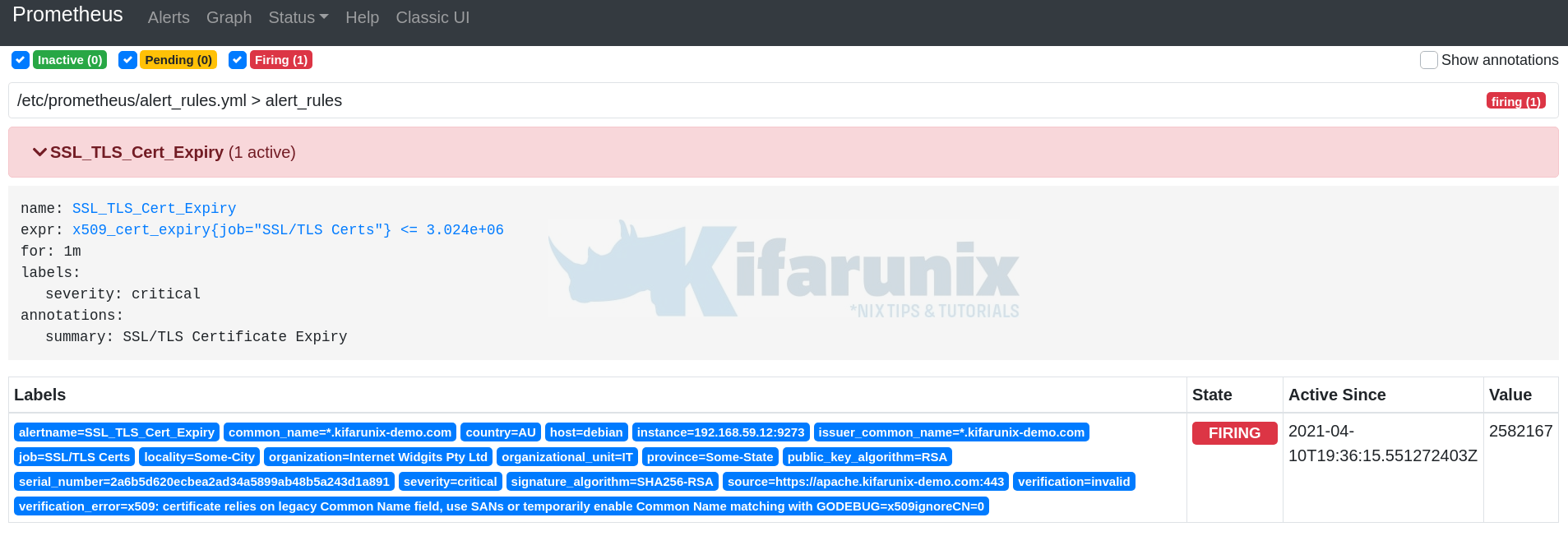

prometheus alertmanager alerts firing

Check Prometheus Alerts page;

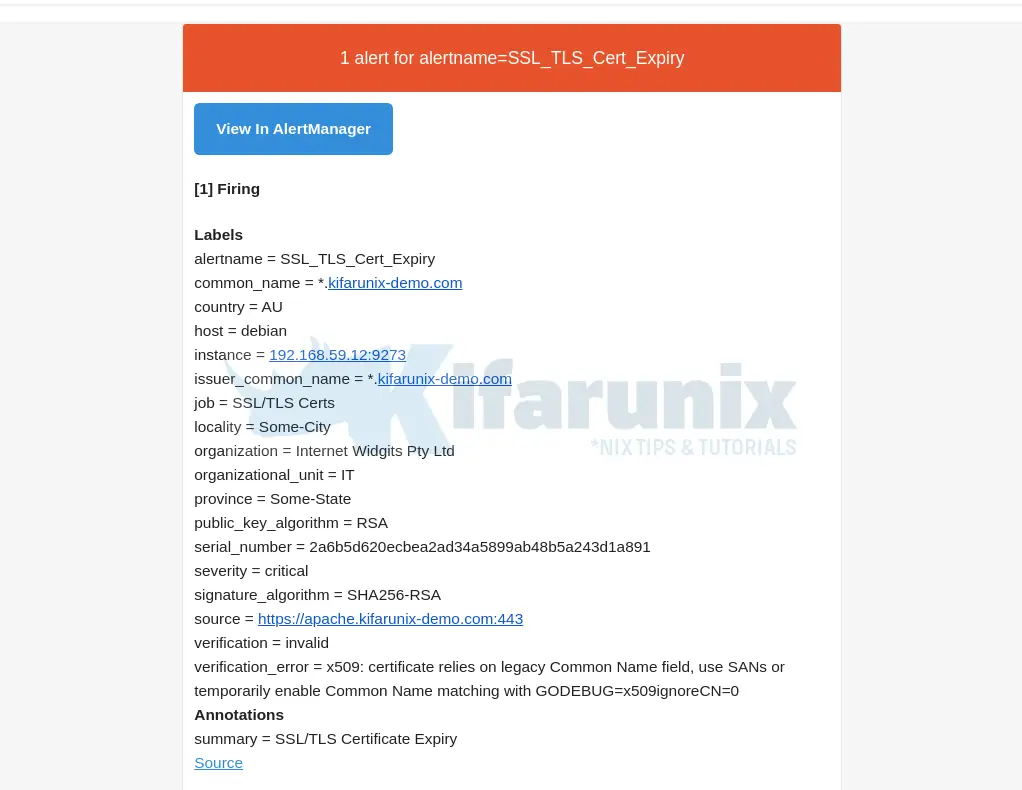

Also check your mail;

alertmanager email alert

You can further customize the email template.

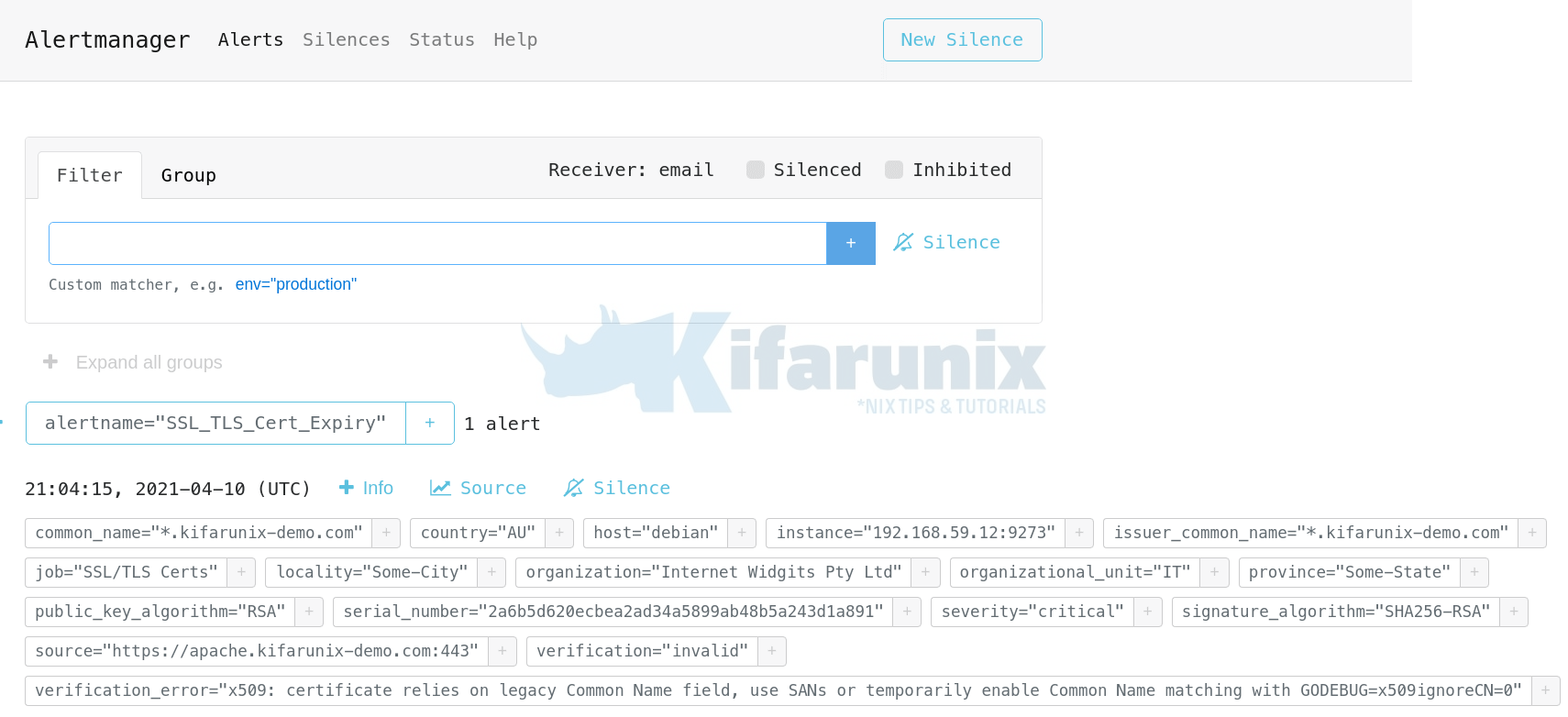

Alertmanager alerts

You can also view alerts in Alertmanager, http://x.x.x.x:9093/alerts;
